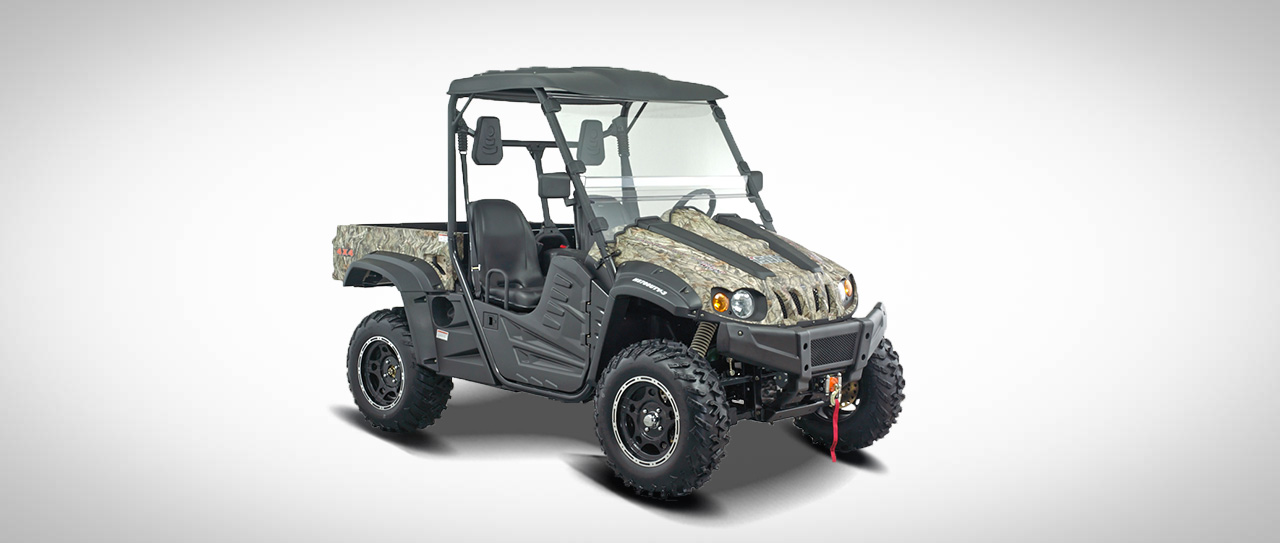

HS 500/700

STARTING AT: $12,000 / $13,499

Highlights:

Electronic Fuel Injection (EFI)
On Demand 4-Wheel Drive
Standard Doors

In the long run value is measured by performance and durability. Value is what the HS Series of Utility Vehicles have been delivering to enthusiasts world-wide since its introduction in 2006. The HS Series electronic fuel injected four-wheel-drive UTVs come in three different models/engine displacements; 400cc, 500cc, and 700cc.

Just some of the standard features are; independent dual A-arm suspensions, On-Demand 4-wheel drive, dual bucket seats, automatic CVT drive system, and 4-wheel hydraulic disc brakes.

Specification

Engine

Type: 4-Stroke OHV / 1-Cylinde, 2 valves

Displacement: 471cc

Bore and Stroke: 84.5 x 84

Compression Ratio: 9.4 : 1

Fuel System: Delphi EFI

Cooling: Liquid

Starting System: Electronic

Drive Train

Transmission: Automatic CVT

Drive System: On Demand 2WD / 4WD with Locking Differential - L H N R

Final Drive: Shaft Drive

Chassis / Suspension / Brakes

Suspension Front: Independent dual A-arm with Anti-sway system

Suspension Rear: Independent dual A-arm with Anti-sway system

Brakes Front: Dual Ventilated Hydraulic Disc

Brakes Rear: Dual Ventilated Hydraulic Disc

Tires / Front: AT26 x 9 –12 Radial

Tires / Rear: AT26 x 10 –12 Radial

Dimensions

L x W x H: 118.5″ x 57.5″ x 72.4″

Wheelbase: 75"

Fuel Capacity:28.7 L

Vehicle Weight: 1197 lbs

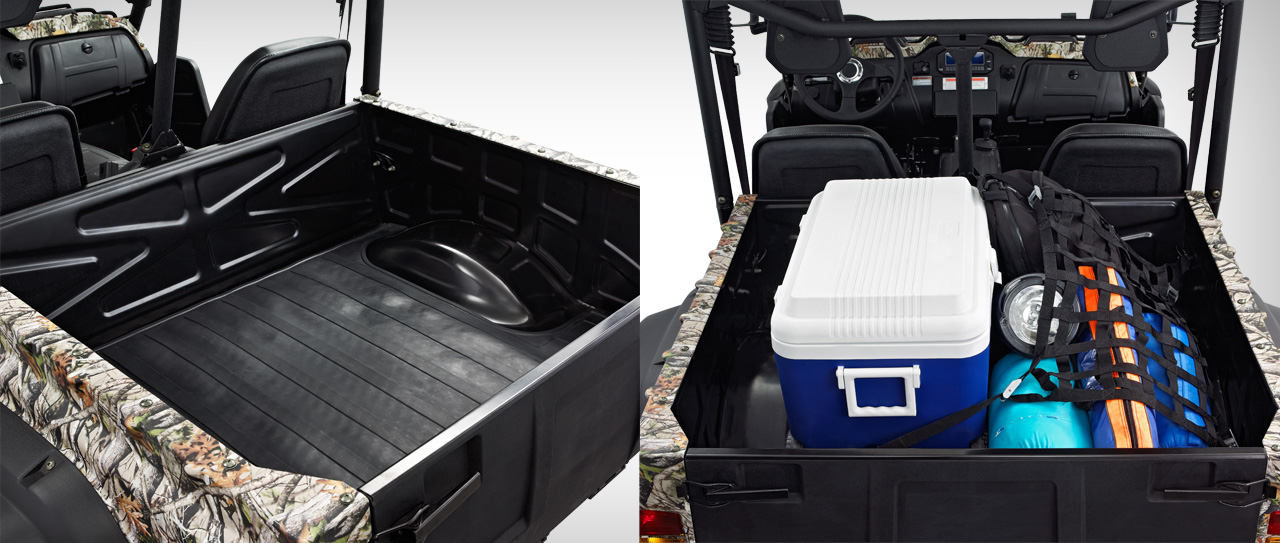

Cargo Bed Capacity: 350 lbs

Towing Capacity: 550 KGS

Ground Clearance: 11"

Other

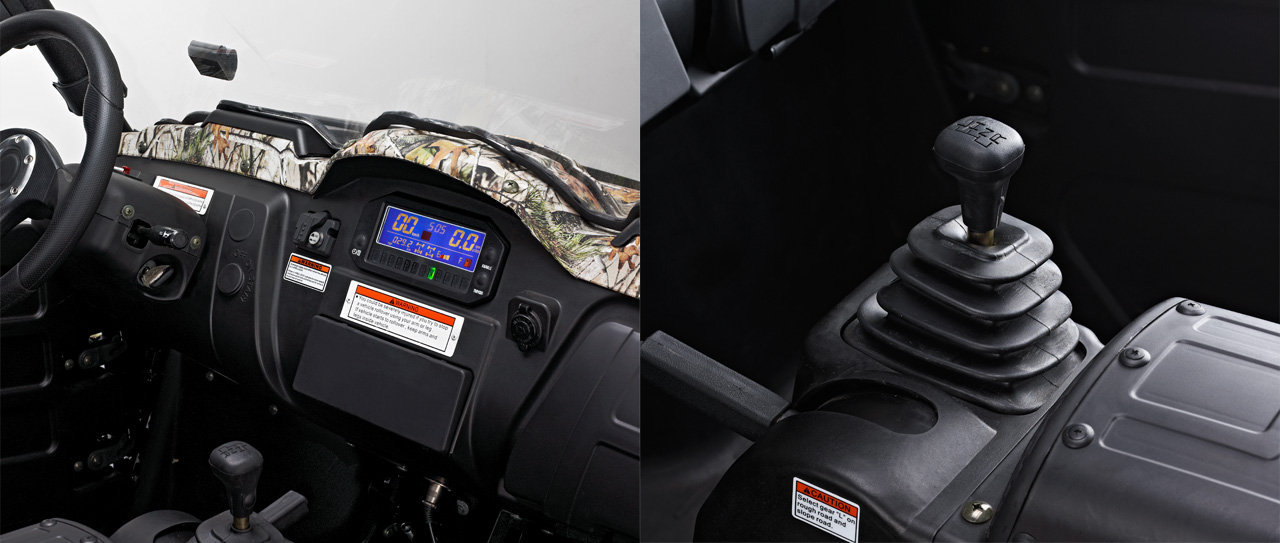

Instrumentation: Digital Dual Display

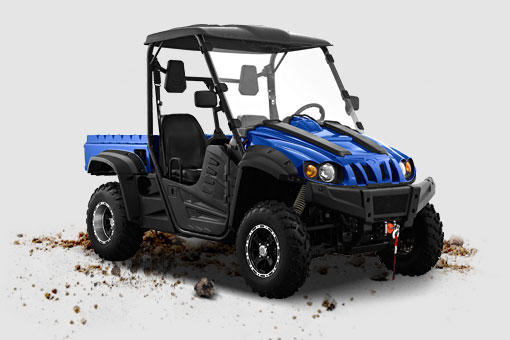

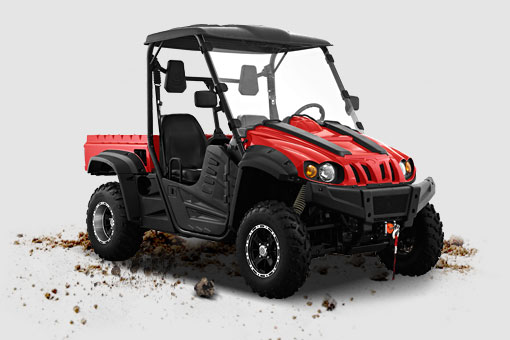

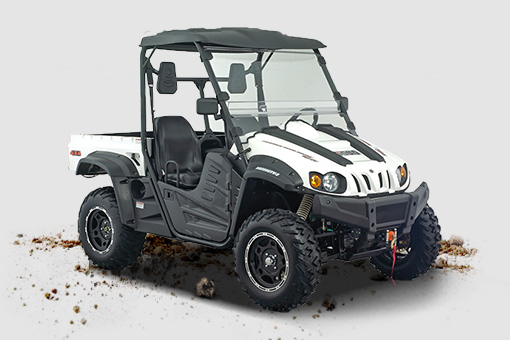

Available Colors: White, Black, Blue, Red, Orange, Vista Camo

Accessories: 3500lb Winch, Roof, Windshield, Aluminum Rims, Turn Signals,
Increased Suspension Width for Stability, Doors

Compliance: EPA / CARB

Warranty: 1 Year Factory

Engine

Type: 4-Stroke - OHV / 1-Cylinder, 5 valves

Displacement: 686cc

Bore and Stroke: 102 x 84

Compression Ratio: 9.2 : 1

Fuel System: Delphi EFI

Cooling: Liquid

Starting System: Electronic

Drive Train

Transmission: Automatic CVT

Drive System: On Demand 2WD / 4WD with Locking Differential - L H N R

Final Drive: Shaft Drive

Chassis / Suspension / Brakes

Suspension Front: Independent dual A-arm with Anti-sway system

Suspension Rear: Independent dual A-arm with Anti-sway system

Brakes Front: Dual Ventilated Hydraulic Disc

Brakes Rear: Dual Ventilated Hydraulic Disc

Tires / Front: AT26 x 9 –12 Radial

Tires / Rear: AT26 x 10 –12 Radial

Dimensions

L x W x H: 118.5″ x 57.5″ x 72.4″

Wheelbase: 75"

Fuel Capacity:28.7 L

Vehicle Weight: 1197 lbs

Cargo Bed Capacity: 350 lbs

Towing Capacity: 550 KGS

Ground Clearance: 11"

Other

Instrumentation: Digital Dual Display

Available Colors: White, Black, Blue, Red, Orange, Vista Camo

Accessories: 3500lb Winch, Roof, Windshield, Aluminum Rims, Turn Signals,
Increased Suspension Width for Stability, Doors

Compliance: EPA / CARB

Warranty: 1 Year Factory
