Specification
Engine
Type: 4-Stroke - OHV / 1-Cylinder, 5 Valves
Displacement: 735cc
Bore and Stroke: 102 x 90
Compression Ratio: 9.7 : 1
Fuel System: Delphi EFI
Cooling: Liquid
Starting System: Electronic
Drive Train
Transmission: Automatic CVT
Drive System: On Demand 2WD / 4WD with Locking Differential - L H N R
Final Drive: Shaft Drive
Chassis / Suspension / Brakes
Suspension Front: Independent dual A-arm with Anti-sway system
Suspension Rear: Independent dual A-arm with Anti-sway system
Brakes Front: Dual Ventilated Hydraulic Disc
Brakes Rear: Dual Ventilated Hydraulic Disc
Tires / Front: AT26 x 9 –12 Radial
Tires / Rear: AT26 x 10 –12 Radial
Dimensions
L x W x H: 155.51" x 66.75" x 77.75"
Wheelbase: 112.99"
Fuel Capacity: 28.7 L
Vehicle Weight: 1319 lbs
Cargo Bed Capacity: 350 lbs
Towing Capacity: 550 KGS
Ground Clearance: 11"
Other

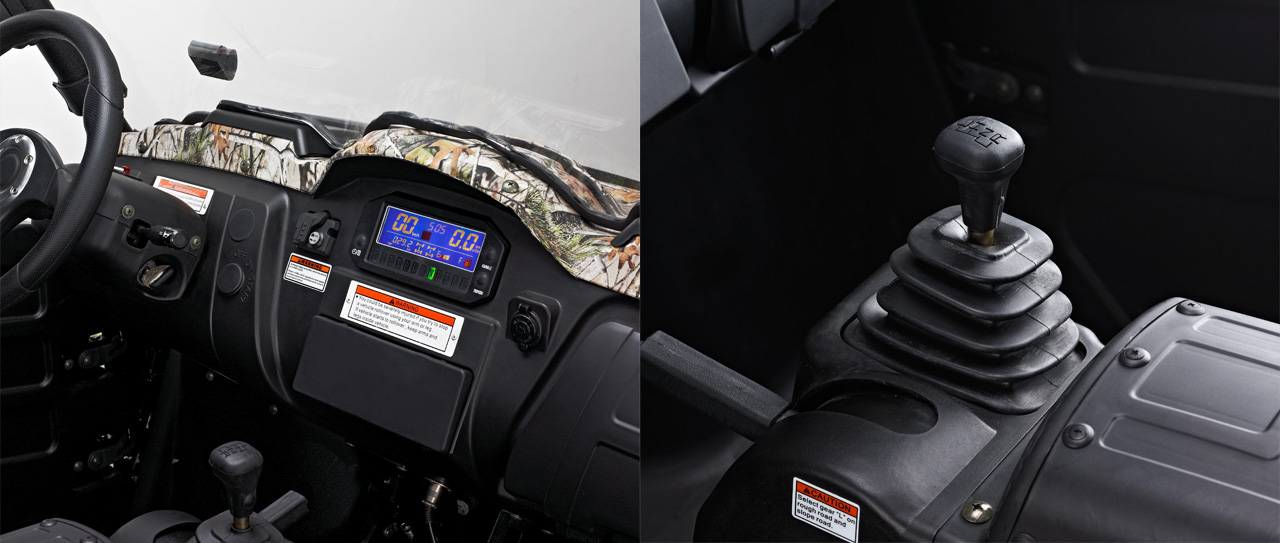

Instrumentation: Digital Dual Display

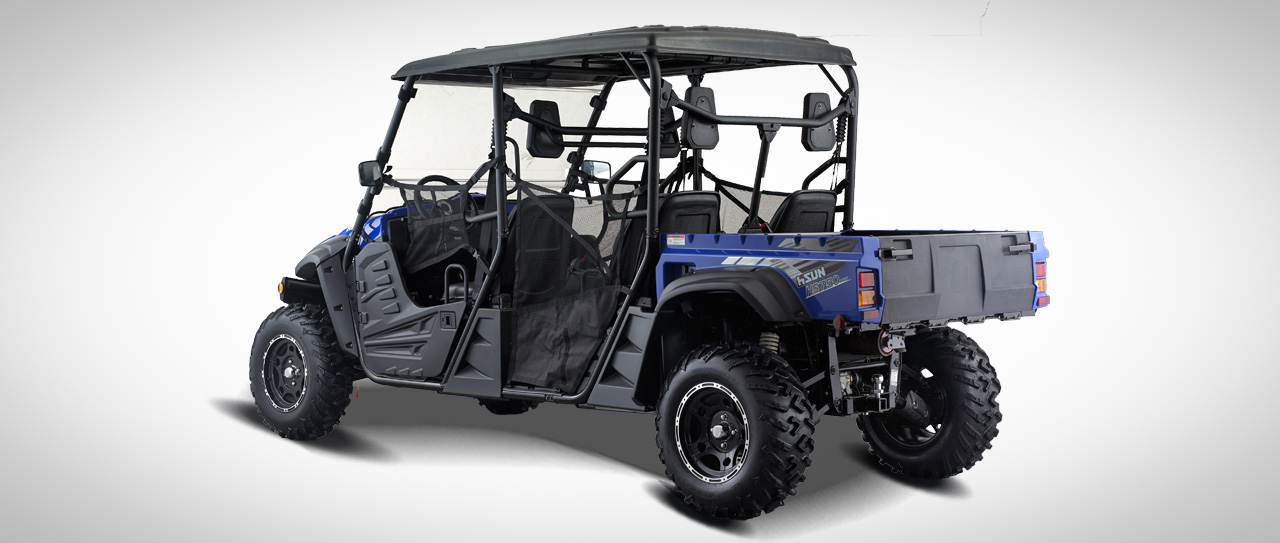

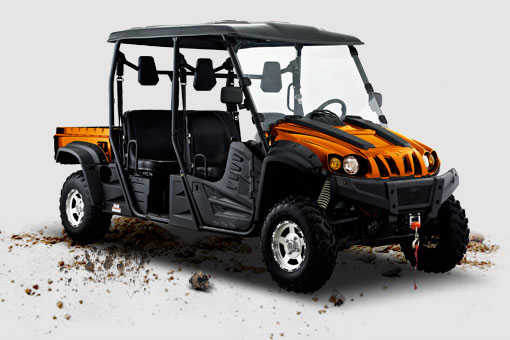

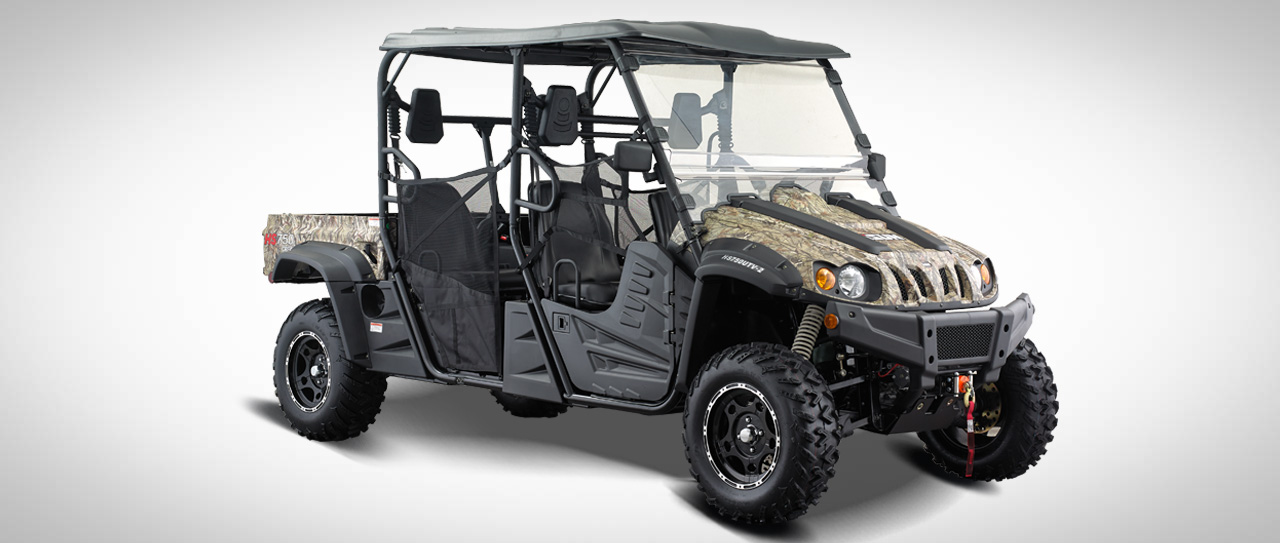

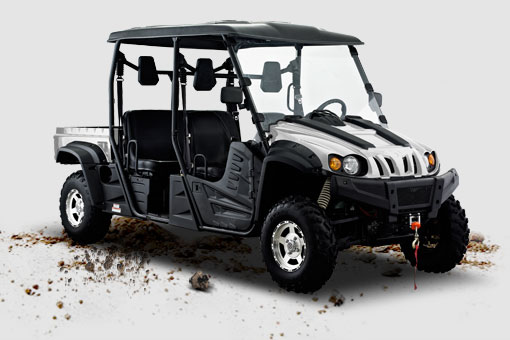

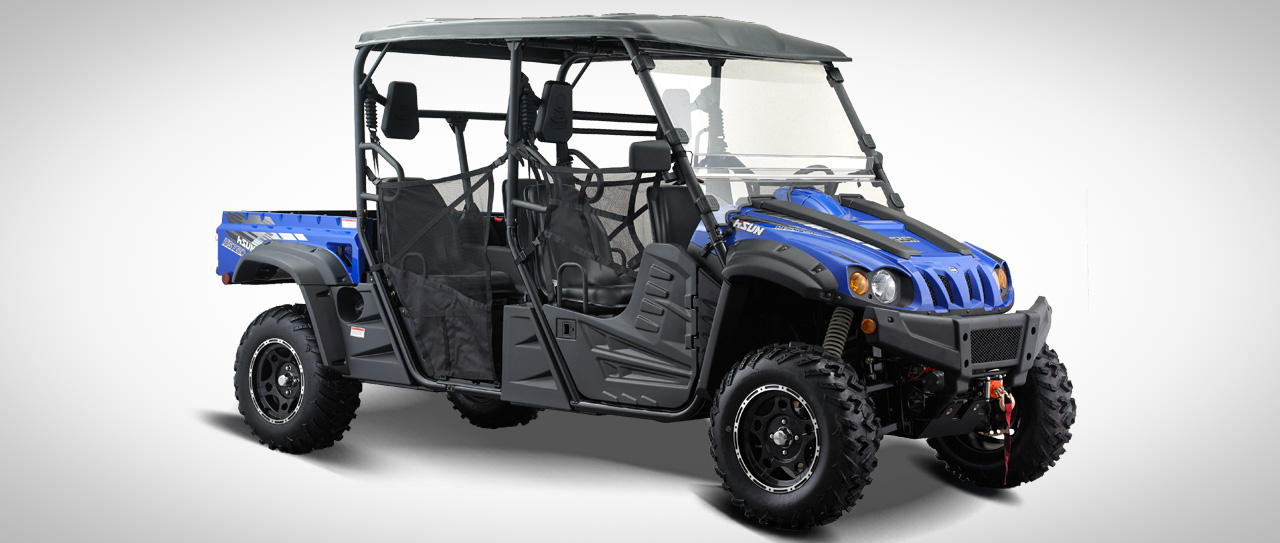

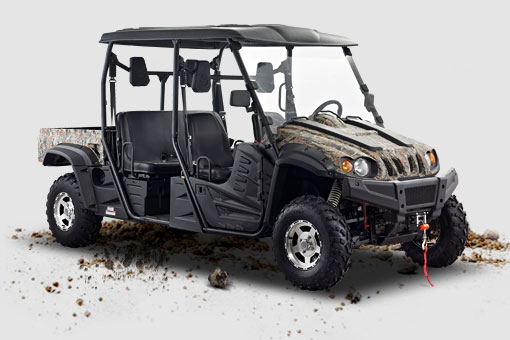

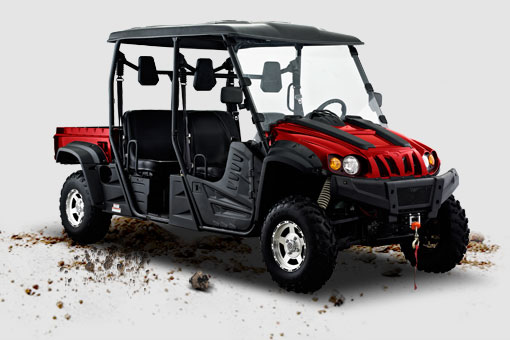

Available Colors: White, Black, Blue, Red, Orange, Vista Camo
Accessories: Crew Seating, 3500 lb Winch, Roof, Windshield, Aluminum Rims,
Increased Suspension Width for Stability, Doors, Turn Signals
Compliance: EPA / CARB
Warranty: 1 Year Factory
Highlights:
Seating for 4
Electronic Fuel Injection (EFI)
On Demand 4-Wheel Drive
Standard Doors

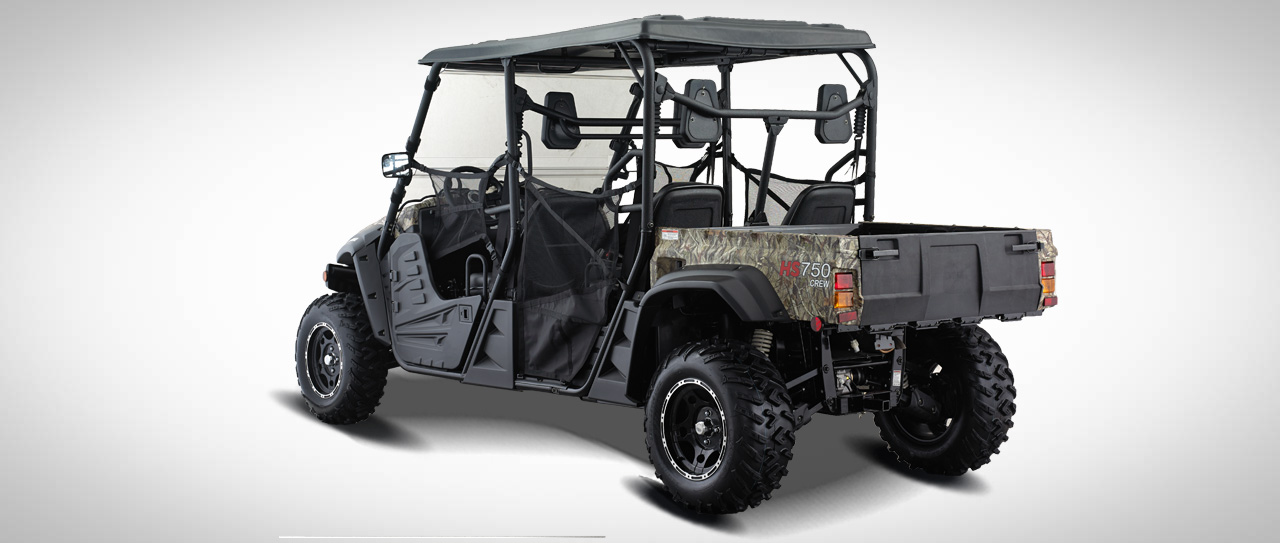

Hunting, fishing, or working around the farm is just more fun when you can take the whole crew. Hisun’s 4-Seat 750cc UTV incorporates all of the quality features of our most popular model with an added bonus of extra seating. Just some of the standard features are; independent dual A-arm suspensions, 4-wheel drive, dual bucket seats, bucket rear seating, automatic CVT drive system, and 4-wheel hydraulic disc brakes.
